Everything you need to get started using our guide:
1 Pixhawk flight controller (or any natively supported flight contoller, such as Pixracer, Pixhawk Cube, Pixhawk 2.4.8, Pixhawk 4, Durandal, or any of the products from MRobotics.
2 A 6 channel 2.4 ghz aircraft radio, with throttle channel failsafe, and preferably Sbus or Ibus receiver (although most pixhawks come with a PPM to Sbus converter if you have an older radio)
3 A conventional airworthy model aircraft
4 A PC laptop computer to take to the field. (it will be used to install the open source Mission Planner free software for setup, flight planning, and as a ground station)
5 Basic ability to mount components in the aircraft, and ability to fly a basic RC plane.
(we include instructions on how to make your first flight in FBWA, a pilot assist mode, in case your RC skills are less than good.)
6 What you will need besides the Laptop and Pixhawk:
1 Digital airspeed sensor for Pixhawk with Pitot tube
2 Current sensor
3 I2C splitter
4 M8N GPS receiver
5 BEC 5v (recommended) to power the servo rail
6 Holybro 900mhz or 433mhz (recommended) 500mw telemetry radio
(note: some Pixhawk kits come with GPS, I2c splitter, microDS memory card and current sensor.)
We recommend purchasing the telemetry radios and digital airspeed sensor separately.
What you get when you purchase this guide:
Step by step text document instructions in plain English (sorry if you don't speak English)
Covering all aspects of setup from the first time you connect a USB cable to your Pixhawk, or other natively supported arduplilot flight controller, through to how to analyze your results from your first autonomous missions.
* setup of telemetry radios for wireless communication with aircraft/ hardware recommendations
* integration instructions of all sensors needed to make your plane fly at the next level (including airspeed sensor, GPS, and Voltage/current sensor)
* Instructions, and tips for using Mission Planner free software on you PC laptop. (with this guide, it's the only thing you will need to download to get your plane in the air)
* Explanation of the Ardupilot / Pixhawk system architecture and how to get the most functionality/performance from your equipment for the least price. (this guide pays for itself)
* Control system setup details (Step-by-step setup for affordable FlySky radios with underlying principles explained to allow setup on many other RC control systems)
* Failsafe setup fully explained (Don't lose another plane again to a poorly setup Flight Controller). You no longer need to worry about what happens if you lose RC control, contact with the ground station, if your battery runs low, etc. etc. This guide covers it all!
* Provides all of the information you need to go from buying the hardware to switching into AUTO mode and watching your plane fly missions YOU design all by ITSELF !
* Nothing left out!! Feel lost watching Youtube Tutorials that leave out the details? and getting more confused the more you watch? Or just feel like it's taking forever to learn a little bit? Or did you setup an ardupilot based system a few years ago, but are unfamiliar with the latest changes since the 3.8 major change to the firmware, and want the confidence to make sure you are not missing anything with the latest versions?
We had the same problems, and Dove deep into the ARDUPLANE world, going through setup on several different builds this last year, while taking the time to document every detail in order to make this guide!
If you have been hesitant until now, This is for you!!!
ARDUPLANE HAS NEVER BEEN EASIER !
Only $5 USD for this
PDF Plan Sheet!
Plans Sheet sent via Dropbox, or Email
Cost $5 USD.
When you purchase the plan sheet, the dropbox link is sent to your Email address provided as contact by Paypal.
If you prefer, the Plan sheet can be sent by email. Send us an email to: fpvreviews@gmail.com to request this option, as soon as you make the purchase.

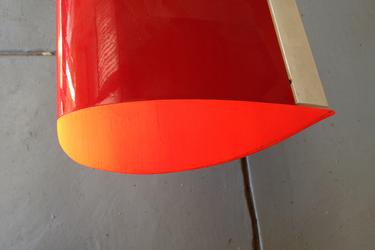

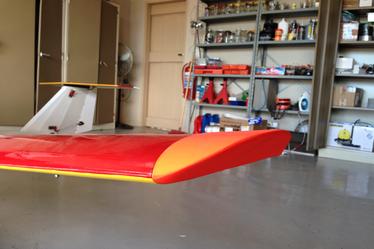

Improved Wing-Tips for Gemini V-2
PDF Plans available here:
Only $5 USD!
Plans Sheet sent via Dropbox, or Email
Cost $5 USD.
When you purchase the plan sheet, the dropbox link is sent to your Email address provided as contact by Paypal.
If you prefer, the Plan sheet can be sent by email. Send us an email to: fpvreviews@gmail.com to request this option, as soon as you make the purchase.
Following are some pictures that will make the setup easier once you purchase the plans:
Only $5 USD for this
PDF Plan Sheet!

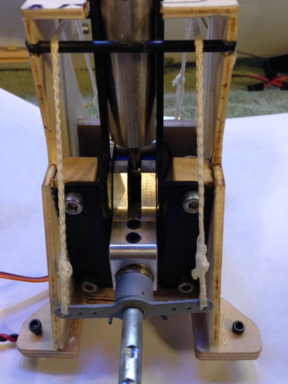

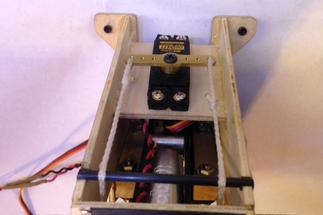

Heavy Duty Nose-Gear Retract for Gemini V-2
PDF Plans available here:
Only $5 USD!
This Guide includes full TECS Tuning advice, procedures, Navigation loop tuning made easy and even advice on AUTO-Takeoff! Also quick reference guides for all of the parameters you will need to know, and speed conversion charts!
Everything that the Youtube tutorials have and also everything they are MISSING!
All in a PDF Text document that you can take to the field with you !!!
This is the guide that we wrote for ours own use and now making available to you !
FINALLY !! A FULL SETUP AND TUNING GUIDE !
Features:
*High Torque Digital 180 degree servos
*Robart Hinge Hardware
*Optimal Geometry for deployment and holding strength
*Easy Installation requires minimal work
*Compartmentalized design prevents pressure differential inside fuselage when deployed.
*Highly accurate laser cut parts fit the kit precisely
*Grey primer unless otherwise specified (many other colors available on request)
*Proven air brake design can be deployed in cruise flight without damage
*Improves Yaw stability at low speeds on landing approach
* Great for descending fast from high altitude
*Adjustable Aluminum linkage for Precise action
*Takes up minimal space in the "Trunk" rear payload bay
Questions? Send an email to: fpvreviews@gmail.com
Pre-Built Air Brake Assemblies for Gemini V-2
Available here as retrofit to kit built aircraft:
Minor assembly is required. Available in Black and Grey. $180 USD! + shipping
ARDUPLANE SETUP AND TUNING GUIDE FOR CONVENTIONAL FIXED WING AIRCRAFT PDF $15 USD via email
