When you Purchase Plans, Here's how it works:
Receiving the plans via dropbox is so easy, even grandpa can do it!
P.D.F. Plans with full size patterns
NOTE:
PDF Plans can also be sent via E-mail if you prefer. (just provide your email address in "Notes to Seller" when you purchase. (Otherwise, a dropbox link will be sent to your Paypal linked E-mail address) You can also contact us at: fpvreviews@gmail.com if there are any issues, and we'll sort it out right away! Please check your junk mail before assuming there is a problem.
For any questions about the boats, send an email to the Designer, Gary at gringogary8@aol.com
New RC design based on traditional
vessels.
Circa
1850
Particulars:
Length overall 1 meter 39.375 in
Length waterline: 97.8 cm 38.5 in
Beam: 31 cm 12.25 in
Draft: 50.8 cm 20 in
Displacement: 6.14 kg 13.5 lbs
Ballast fin / bulb: 3.4 kg 7.5 lbs
Sail area: 3393 sq cm 526 sq in
Height above water: 99 cm 39 in
Thanks to all those who have kindly sent us photos of their model projects.
Gary
OPTION 2: -PAPER PLANS-
Printed paper plans are now available for purchase, with direct shipping to your home or business, through a partnership with flying-models.com! Simply click on the link below to find the Bearospace boat plans on their website:
Fantasy Boats:
My boat designs are “Fantasy Boats”. I want them to LOOK like REAL boats, GOOD boats, SIMPLE boats, the way boats looked years ago, “Vintage” some might say. They portray boats that might have been, or might one day come to be. I also want models that sail in a realistic manner. No “submarining” on a downwind run, or decks awash and booms dragging in the water while on a beam reach in fair weather. No failures to come about, or unwanted rounding up, out of control, in a moderate breeze. These designs stray from being truly “scale” because they include distortions and compromises which are necessary for the model to sail well. The physical laws of mechanical similitude, the “square-cube thing”, come into play.
And that folks, is why my boat designs are the way they are….Cheers, Gary
We are pleased that respected model yacht sailmaker Rod Carr can provide finished sails made to order for:
"Annie", “Irene” and “Emma”.
Contact Rod through his Website: carrsails.com
SAILS FOR ALL OF THE BOATS
$15 U.S.D
email delivery via dropbox app. (You don't need to have dropbox to receive the plans) Sent within 24 hrs
P.D.F. Plans with full size patterns

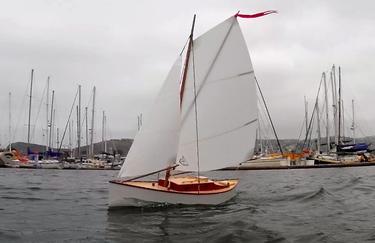

A semi-scale portrayal of a sprit-rigged cruising sloop from the mid 20th century, designed for RC sailing.
$15 U.S.D
email delivery via dropbox app. (You don't need to have dropbox to receive the plans) Sent within 24 hrs
Click here to buy Schooner Irene AND Schooner Annie Plans TOGETHER for only $25 USD
A Skiff and a Dory
Sloop Emma
Receiving the plans via dropbox is so easy, even grandpa can do it!
Sloop Emma
ORIGINAL IRENE
GALLERY
$15 U.S.D
email delivery via dropbox app. (You don't need to have dropbox to receive the plans) Sent within 24 hrs
EMMA

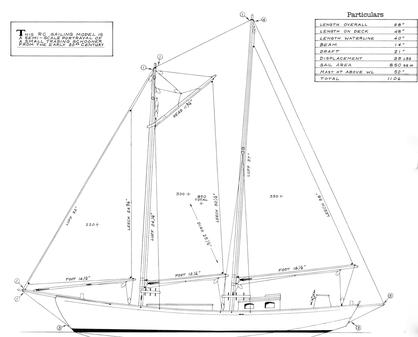

This RC sailing Model "Irene" is a semi-scale portrayal of a small trading schooner from the early 20th century.
We made a TOPSAIL for Emma. Check out how to do it on your Emma, or other RC sailboat by clicking on this video:
OPTION 1: - PDF PLANS SENT VIA EMAIL -
PDF plans purchased from this website site are delivered via email within 24 hrs or less.
Email delivery is via Dropbox app in the form of PDF files which you can view on your computer. (You don't need to have Dropbox to receive plans). Load the PDF onto a memory stick and take it to a printshop which has a roll fed printer capable of printing 36” (90 cm) wide. Shops which print architectural plans can usually do the job. Ask that the pages be printed “100% - actual size”. Pages with full size patterns or drawings have dimension check lines which can be measured to assure that the printing has been done correctly.
Schooner Irene

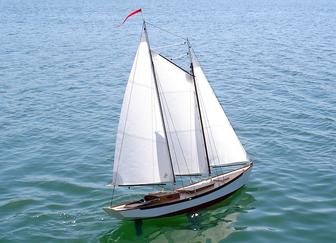

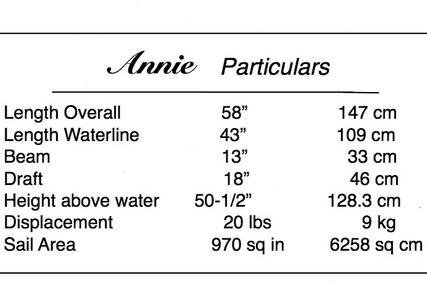

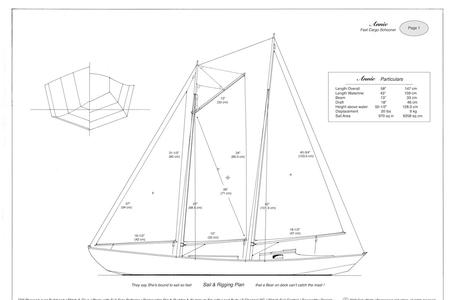

Annie is a semi-scale portrayal of a modern cruising “cargo” schooner, designed for RC sailing.
Annie is a Fast Schooner with traditional eye pleasing appearance, good manners, and easy build.
We made her longer, leaner, and lighter than my earlier Schooner "Irene” design. More “modern” perhaps, without bowsprit or bumkin, and “racier”, minimizing scale like details, giving her a taller rig with lighter spars, and boom vangs.
Annie’s a beauty, She handles like a dream.
How fast is Annie? The fastest boat at the pond?
Honestly, it depends on who shows up at the pond that day. She is, after all, a cargo schooner. Annie is a bit faster than “Irene”, a little bit, but only a little!
If you are wanting to build a schooner, it could be tough to choose between the sleek “Annie” or schooner “Irene” with her traditional character. Both boats look great, and are a delight to sail.
P.D.F. PLANS AVAILABLE BY CLICKING THE BUY NOW BUTTON BELOW!
Click here to buy Schooner Irene AND Sloop Emma Plans TOGETHER for only $25 USD
A traditionally inspired R.C. sailboat for Bear, This stoutly built sailing vessel is stiff enough to hold up to a bear size gale, enabling her to venture far from the protected waters of the local pond, and out into the bay, or even ocean, for long range sailing in open water. Designed by Gary Webb, the renowned full size ocean cruising boat builder, this vessel is worthy of the Bearospace name. Performance is as always, by design. A lot more engineering, calculations, and experience have gone into "IRENE" than most other R.C. Sailboats! Built from inexpensive materials such as doorskin plwood, and epoxy, all but a few parts are available at the local hardware store. This keeps costs at a minimum, and build time in days or weeks, not months or years like some boat models.
An optional sail plan with a gaff main sail is included with the “Irene” plan set.
Also included are patterns for a skiff and a dory, either of which might serve as a dinghy for “Irene”.
P.D.F. PLANS AVAILABLE BY CLICKING THE BUY NOW BUTTON BELOW!
$15 U.S.D
email delivery via dropbox app. (You don't need to have dropbox to receive the plans) Sent within 24 hrs
Schooner Irene
P.D.F. Plans with full size patterns
Special Offers: Save $$$
Receiving the plans via dropbox is so easy, even grandpa can do it!
Patterns included with Schooner Irene plans
Schooner Annie
Detailed step-by-step build instructions with pictures, on more than a dozen PDF documents make Emma easier to build for everyone!
* Full size patterns assure easy, accurate, creation of this model.
* Plywood over bulkhead construction requires no special building jig or forms.
* Drawings and instructions detail hull assembly, radio control system, spars & rigging, keel bulb casting, and more!
“Emma” has a moderate size rig and provides realistic
sailing performance in breezes up to about 15 knots.
Features include removable mast, rudder, and fin keel for easy transport.
Building this boat exercises a variety of skills, making this a satisfying project for the experienced builder or a great learning project for the novice modeler. The finished model is attractive and robust, a real boat in every way!
P.D.F. PLANS AVAILABLE BY CLICKING THE BUY NOW BUTTON BELOW!
Click here to buy ALL 3 ! ! !
Schooner Irene, Schooner Annie AND Sloop Emma Plans TOGETHER for only $35 USD
Particulars:
Length overall: 147.3 cm 58 in Length on deck: 122 cm 48 in
Length Waterline: 101.6 cm 40 in
Beam: 35.5 cm 14 in
Draft: 53.3 cm 21 in
Displacement: 11.4 kg 25 lbs. Sail area: 5484 sq cm 850 sq. in.
Height above water: 127 cm 50 in.
____________________________________
Total: 1106
$15 U.S.D
email delivery via dropbox app. (You don't need to have dropbox to receive the plans) Sent within 24 hrs
$15 U.S.D
email delivery via dropbox app. (You don't need to have dropbox to receive the plans) Sent within 24 hrs
IRENE
GAFF OPTION

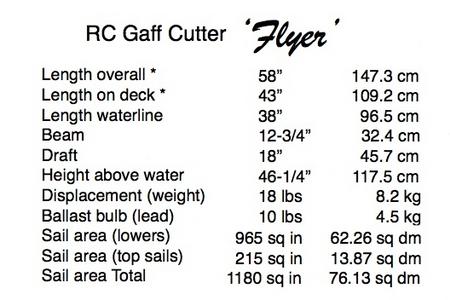

English Pilot cutters inspired the design of this semi scale RC sailing model.
We offer plans for DIY scratch build boats designed for RC sailing. These are real, proper boats which deliver the wholesome good looks of traditional sailing craft, and outstanding, realistic, sailing performance. Plans include full size patterns which make it easy for the hobbyist to accurately create the balanced hull forms. Simple "plywood over bulkhead” construction does not require building jigs or forms. Boat building will exercise a variety of skills, satisfying the seasoned modeler, or providing a great learning experience for the novice. One day you can have the thrill of launching and sailing a boat that you built yourself. Cheers Mates!
$15 U.S.D
email delivery via dropbox app. (You don't need to have dropbox to receive the plans) Sent within 24 hrs
Click here to buy Schooner Annie AND Sloop Emma Plans TOGETHER for only $25 USD
